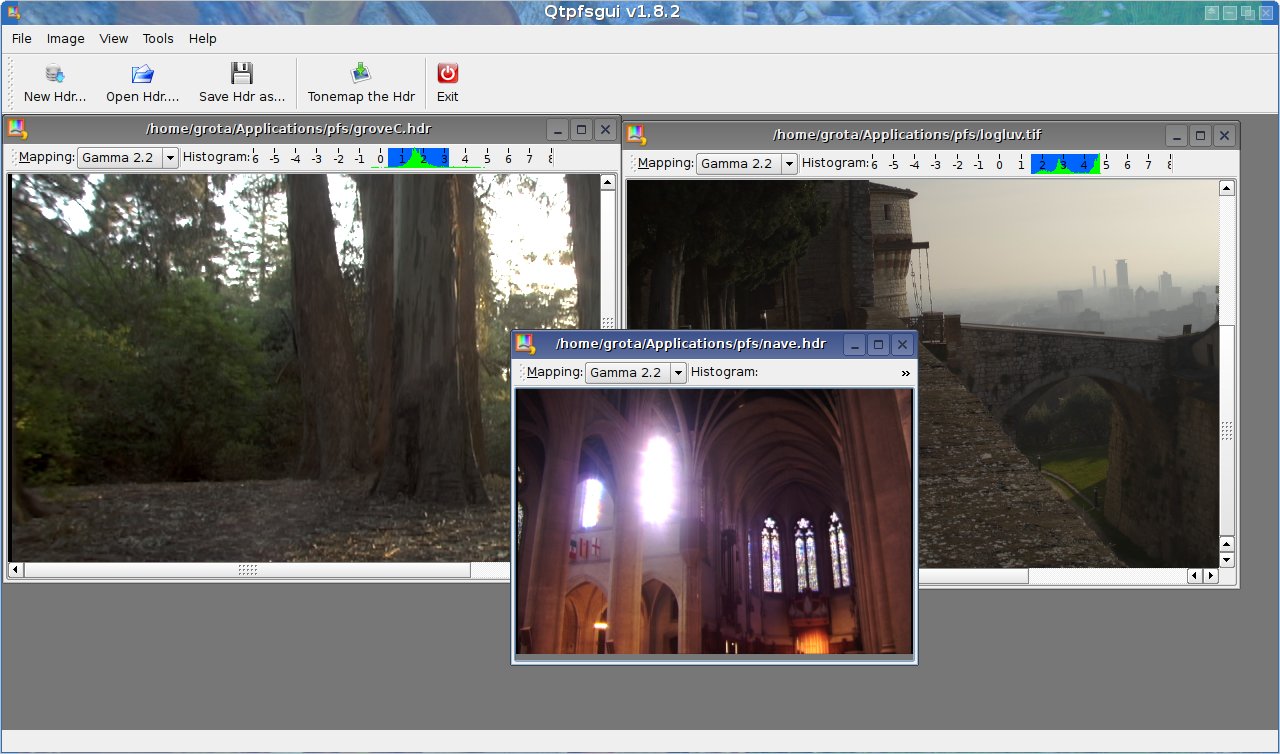

Description: Qtpfsgui is a graphical user interface (based on Qt4) that provides a workflow for HDR imaging.
Supported HDR formats: OpenEXR (extension: exr, linux and Mac OS X only) Radiance RGBE (extension: hdr) Tiff formats: 16bit, 32bit (float) and LogLuv (extension: tiff) Raw image formats (extension: various) PFS native format (extension: pfs) Supported LDR formats: JPEG, PNG, PPM, PBM, TIFF(8 bit) Supported features: Create an HDR file from a set of images (formats: JPEG, TIFF 8bit and 16bit, RAW) of the same scene taken at different exposure setting. Save and load HDR files. Rotate and resize HDR files. Tonemap HDR images. Copy exif data between sets of images.
For ubuntu packages see: http://bellette.tuxfamily.org/tutos/hdr/3.phpLast changelog:
Where is KDE parts of this Application? This app should go to http://qt-apps.org if this application dont use KDE style/color and open/save dialog.
I tought this was KDE application and because it isn't it's on wrong site. Sorry...
Has anyone been able to compile properly align_image_stack from hugin`s svn repository?
I am getting errors...
Can someone send me the align_image_stack executable?
If possible for 64bit but I think that it will also work with the 32bit compatibility layer on my kubuntu feisty :)
Thanks in advance.
OK Finally I got it compiled!!
Not the hole hugin (It still gives me some errors) but at least it has passed the align_image_stack compilation :)
It is a 39MB executable!!!
try stripping the debug symbols from it with:
strip align_image_stack
before the "make install" step, or before moving/copying it to a directory named in the PATH var.
How did you do that? I downloaded hugin from the svn repository, did cmake and make install, but align_image_stack was not compiled in the process. When I navigate to the directory where align_image_stack.cpp is located (hugin/src/hugin1/tools) and do a cmake/make install from here, compilator complains about a missing config.h and compilation fails.
Alright, I managed to compile align_image_stack by de-commenting the "add_subdirectory(tools)" line in the CMakeLists.txt file located in hugin/src/hugin1.
I have copied the align_image_stack binary in /usr/local/bin and now Qtpfsgui can find it. However, I now get the following error:
"The external process "align_image_stack" crashed..."
I guess it's because my images do not have the right format.

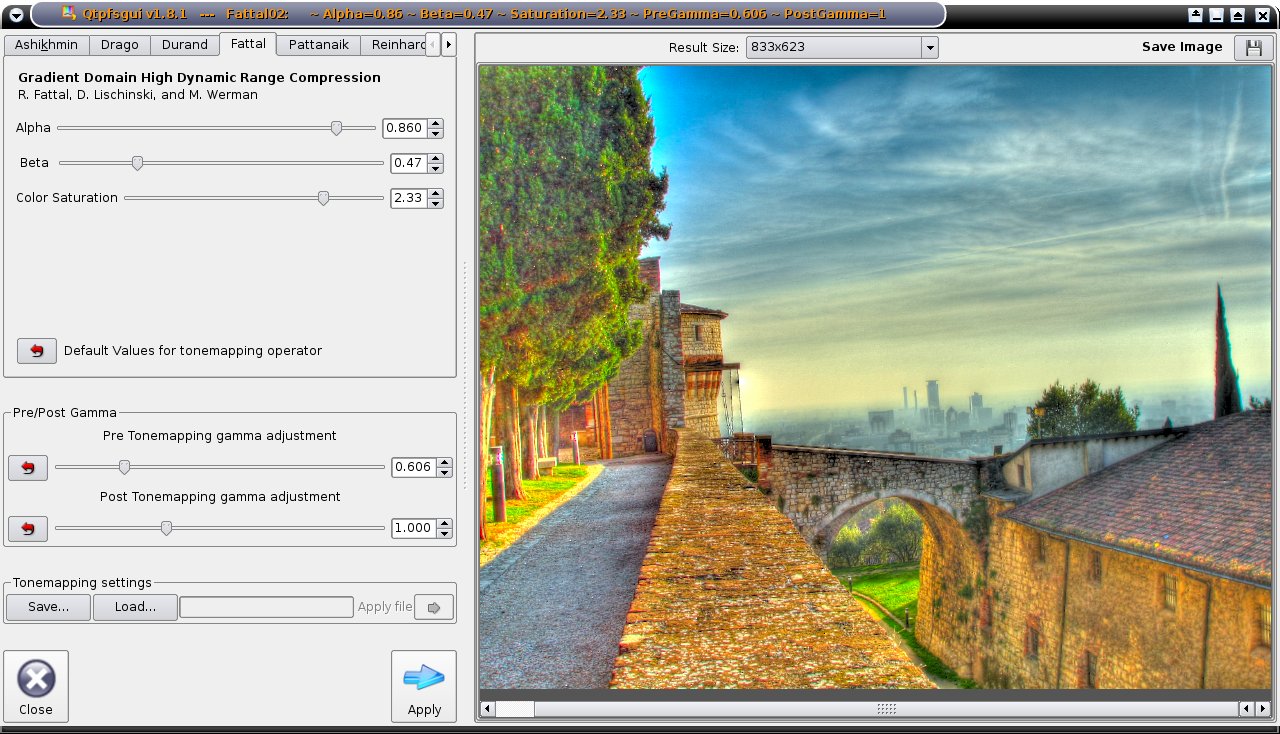

Once you have an HDR image loaded up in the workspace you have to tone map it (use the big button, shortcut:CTRL+T) to get an LDR (like Jpeg). Only after the tone mapping step has been performed you can save it as jpeg.
1) if the checkbox is grayed-out and you cannot specify any value manually, it means that Qtpfsgui is using the correct values from the exif data in your image.
In that case there is no need to specify the exposure values manually, Qtpfsgui is already using the correct ones automatically.
2) Yes there were several bugs that crept in (especially in the windows version) but with the latest version (1.8.8) all of them have been fixed.
3) Saving a tonemapped LDR in a 16 bit format makes little sense (to me, at least) :)
Here's a discussion we had a while back on flickr:
http://www.flickr.com/groups/qtpfsgui/discuss/72157594548766502/72157600058641698/
1) if the checkbox is grayed-out and you cannot specify any value manually, it means that Qtpfsgui is using the correct values from the exif data in your image.
In that case there is no need to specify the exposure values manually, Qtpfsgui is already using the correct ones automatically.
This works only in ideal world... Yes. There is a need to specify values manually because exif values can be incorrect even if the program reads those incorrect values correctly!
2) Yes there were several bugs that crept in (especially in the windows version) but with the latest version (1.8.8) all of them have been fixed.
I meant 1.8.7 linux version.
3) Saving a tonemapped LDR in a 16 bit format makes little sense (to me, at least) :)
Here's a discussion we had a while back on flickr:
http://www.flickr.com/groups/qtpfsgui/discuss/72157594548766502/72157600058641698/
so the operators produce 8 bit output... ok.
1) qtpfsgui provides a one-to-one exif data copying feature, maybe that can help you cope with that problem.
I'm curious, how is it possible that the aperture value and the exposure time info in the exif data can end up being wrong??
Another workaround is to use a different application to erase all your exif data (qtpfsgui doesn't have that capability).
Just remember that if you are dealing with only one image then you can set the EV value at an arbitrary level, the histogram will only be translated left or right, you can find the mathematical reasoning here (pretty hardcore stuff):
http://freenet-homepage.de/hsbosny/HDR_Tutorial/HDR_Tutorial-en.html#Bemerk_1
2) Does it still crash with 1.8.8?
1. Of course it is easy to screw up exif. In my particular example tiff files apparently have wrong exifs after output from raw covertor. Of course I now always have to set in the raw converter to not export exif if I intend use qtpfsgui and after that I always have to set it back as it also affects jpegs output (for jpegs exifs work fine). Very inconvenient.
Why not to read the exif and also make comboboxes which set this "alive"? This seems very natural.
2.Thank you! It does not crash anymore.This is great.
Also unfortunately it constantly crashes or hangs in tonemapping :(.
It seems more prone to crash if I click apply quickly after changing some parameter, but not only.
qtpfsgui is crashing if I want to tonemap too. Here is the console Output:
::::::original goes into resize
executing resize step
executing pregamma step
executing tone mapping step
Speicherzugriffsfehler
I have Suse 10.2 64Bit
Same problem with the tonemapper in OpenSusue 10.2 (32-bit):
::::::original goes into resize
executing resize step
executing pregamma step
executing tone mapping step
Segmentation fault
I tried RPM and also self compiled package.
Any idea for help?
best regards
candy33
I have also problem with the tonemapper in OpenSusue 10.2 (32-bit):
::::::original goes into resize
executing resize step
executing pregamma step
executing tone mapping step
Segmentation fault
Urgently need help!
Thanks
motu
New version 1.8.10 works on SUSE 10.2
you can find it here:
ftp://rauchs-home.de/suse/10.2/i586
you need to install libexiv2-0.11 first.
if libexiv2-0.11 conflicts with other versions of libexif, install it with "rpm -i --force ...", it doesn't matter to have different version on the same machine.
best regards
candy33
when i open tiff which is made from raw. the program erroneously determines or reads it in the tiff that EV=-6 for all files. The problem is it cannot be adjusted (corrected) manually!
Have you thought about adding this as a plugin or similar to the upcoming krita? I know that the krita developers are thinking about including tone mapping support and would be happy to see any help there.
Ratings & Comments
26 Comments
Where is KDE parts of this Application? This app should go to http://qt-apps.org if this application dont use KDE style/color and open/save dialog. I tought this was KDE application and because it isn't it's on wrong site. Sorry...
Has anyone been able to compile properly align_image_stack from hugin`s svn repository? I am getting errors... Can someone send me the align_image_stack executable? If possible for 64bit but I think that it will also work with the 32bit compatibility layer on my kubuntu feisty :) Thanks in advance.
OK Finally I got it compiled!! Not the hole hugin (It still gives me some errors) but at least it has passed the align_image_stack compilation :) It is a 39MB executable!!!
try stripping the debug symbols from it with: strip align_image_stack before the "make install" step, or before moving/copying it to a directory named in the PATH var.
How did you do that? I downloaded hugin from the svn repository, did cmake and make install, but align_image_stack was not compiled in the process. When I navigate to the directory where align_image_stack.cpp is located (hugin/src/hugin1/tools) and do a cmake/make install from here, compilator complains about a missing config.h and compilation fails.
Alright, I managed to compile align_image_stack by de-commenting the "add_subdirectory(tools)" line in the CMakeLists.txt file located in hugin/src/hugin1. I have copied the align_image_stack binary in /usr/local/bin and now Qtpfsgui can find it. However, I now get the following error: "The external process "align_image_stack" crashed..." I guess it's because my images do not have the right format.
Is there any way that I can save my final HDR Image as a JPEG Image?
Once you have an HDR image loaded up in the workspace you have to tone map it (use the big button, shortcut:CTRL+T) to get an LDR (like Jpeg). Only after the tone mapping step has been performed you can save it as jpeg.
Yes, I have already found it.. Anyway, Thanks for the reply :)
This program rules in every way: features, interface, full GPL, and sourceforge trackers. Thanks for a great program..
Please add saving result in 16bit. Does the current png option save it in 16 bit? Thanks. Very promising program. Please keep developing great app.
1) if the checkbox is grayed-out and you cannot specify any value manually, it means that Qtpfsgui is using the correct values from the exif data in your image. In that case there is no need to specify the exposure values manually, Qtpfsgui is already using the correct ones automatically. 2) Yes there were several bugs that crept in (especially in the windows version) but with the latest version (1.8.8) all of them have been fixed. 3) Saving a tonemapped LDR in a 16 bit format makes little sense (to me, at least) :) Here's a discussion we had a while back on flickr: http://www.flickr.com/groups/qtpfsgui/discuss/72157594548766502/72157600058641698/
1) if the checkbox is grayed-out and you cannot specify any value manually, it means that Qtpfsgui is using the correct values from the exif data in your image. In that case there is no need to specify the exposure values manually, Qtpfsgui is already using the correct ones automatically. This works only in ideal world... Yes. There is a need to specify values manually because exif values can be incorrect even if the program reads those incorrect values correctly! 2) Yes there were several bugs that crept in (especially in the windows version) but with the latest version (1.8.8) all of them have been fixed. I meant 1.8.7 linux version. 3) Saving a tonemapped LDR in a 16 bit format makes little sense (to me, at least) :) Here's a discussion we had a while back on flickr: http://www.flickr.com/groups/qtpfsgui/discuss/72157594548766502/72157600058641698/ so the operators produce 8 bit output... ok.
1) qtpfsgui provides a one-to-one exif data copying feature, maybe that can help you cope with that problem. I'm curious, how is it possible that the aperture value and the exposure time info in the exif data can end up being wrong?? Another workaround is to use a different application to erase all your exif data (qtpfsgui doesn't have that capability). Just remember that if you are dealing with only one image then you can set the EV value at an arbitrary level, the histogram will only be translated left or right, you can find the mathematical reasoning here (pretty hardcore stuff): http://freenet-homepage.de/hsbosny/HDR_Tutorial/HDR_Tutorial-en.html#Bemerk_1 2) Does it still crash with 1.8.8?
1. Of course it is easy to screw up exif. In my particular example tiff files apparently have wrong exifs after output from raw covertor. Of course I now always have to set in the raw converter to not export exif if I intend use qtpfsgui and after that I always have to set it back as it also affects jpegs output (for jpegs exifs work fine). Very inconvenient. Why not to read the exif and also make comboboxes which set this "alive"? This seems very natural. 2.Thank you! It does not crash anymore.This is great.
Also unfortunately it constantly crashes or hangs in tonemapping :(. It seems more prone to crash if I click apply quickly after changing some parameter, but not only.
crashes with something like this: ::::::resized goes into tone mapping QPaintEngine::setSystemClip: Should not be changed while engine is active
qtpfsgui is crashing if I want to tonemap too. Here is the console Output: ::::::original goes into resize executing resize step executing pregamma step executing tone mapping step Speicherzugriffsfehler I have Suse 10.2 64Bit
Same problem with the tonemapper in OpenSusue 10.2 (32-bit): ::::::original goes into resize executing resize step executing pregamma step executing tone mapping step Segmentation fault I tried RPM and also self compiled package. Any idea for help? best regards candy33
I have also problem with the tonemapper in OpenSusue 10.2 (32-bit): ::::::original goes into resize executing resize step executing pregamma step executing tone mapping step Segmentation fault Urgently need help! Thanks motu
New version 1.8.10 works on SUSE 10.2 you can find it here: ftp://rauchs-home.de/suse/10.2/i586 you need to install libexiv2-0.11 first. if libexiv2-0.11 conflicts with other versions of libexif, install it with "rpm -i --force ...", it doesn't matter to have different version on the same machine. best regards candy33
when i open tiff which is made from raw. the program erroneously determines or reads it in the tiff that EV=-6 for all files. The problem is it cannot be adjusted (corrected) manually!
Have you thought about adding this as a plugin or similar to the upcoming krita? I know that the krita developers are thinking about including tone mapping support and would be happy to see any help there.
I didn't know about that. I'll try to remember to give them a holler. They could also help me diminish the memory footprint.
Here is the initial bug report: http://bugs.kde.org/show_bug.cgi?id=125543 Good luck with it :)
